Trim Pot

Designed for use with the PSC controller harnesses, this give you control of the pump assist level.

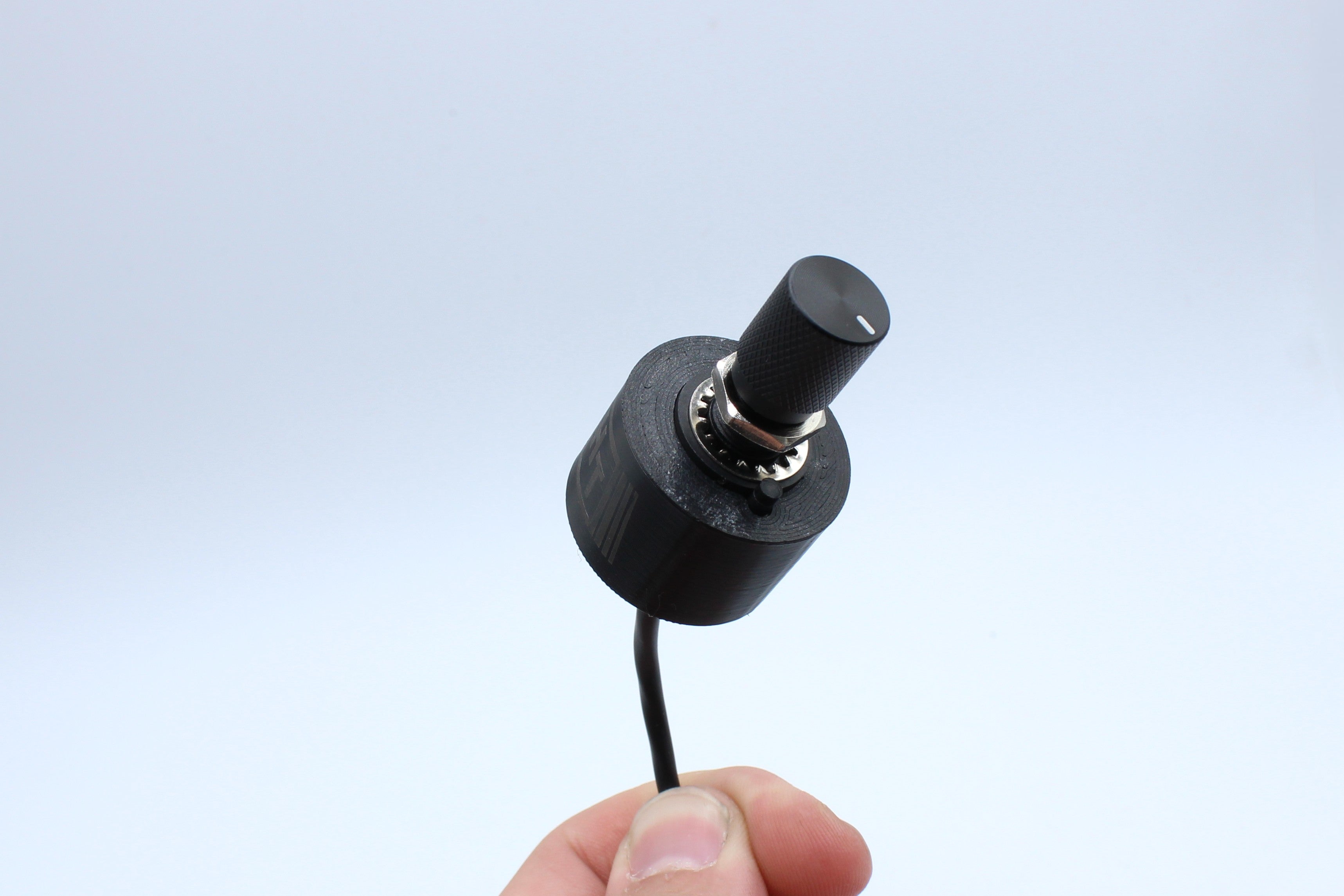

Similar to the previous potentiometer in function and look, but now it has 12 definitive clicks that hold a position. This makes it easier to remember what setting you had it on and it's less likely to be bumped accidentally.

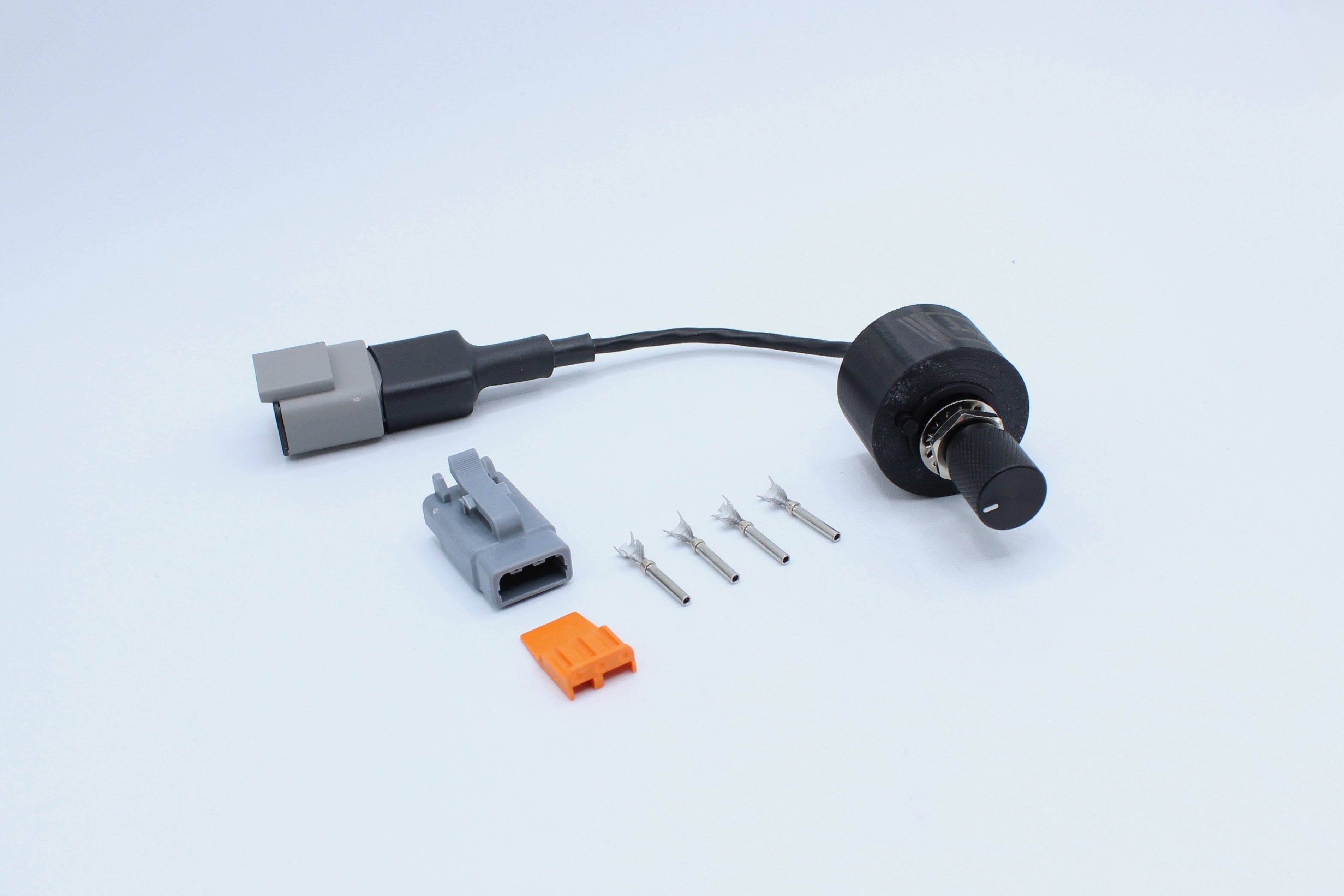

For the ultimate reliability in wet and vibration filled environments, these are resin potted. Out kit includes a mating Amphenol ATM (same as Deutsch DTM) as well as terminals.

This is comparable to trim pots from other brands like AEM or Haltech, and can be used for boost control or a user input on a 0-5V input to an ECU, PDM or Dash.

For use with PSC the pinout is the following; (note terminal number is marked on the connector)

Pin 1 = 5V
Pin 2 = Signal
Pin 3 = Sensor Ground

In the use case with an ECU or other controller and you would prefer the positions to go from 0-5V (PSC is designed to be inverse, where 0V is max and 5V is min) then use the following pinout;

Pin 1 = Sensor Ground
Pin 2 = Signal
Pin 3 = 5V
